Introduction

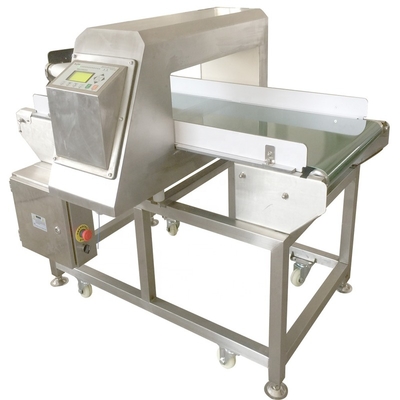

Model JZD-366 is a LCD display intelligent/digital metal detector of two-way signal detection circuit technology ,which adopt advanced electromagnetic detection and digital signal processing technology .using latest DDS (Direct Digital Synthesizer) and DSP(Digital Signal Processor) in Hardware ,and combined with advanced detecting algorithm, selfstudy and full digital regulating function. to make metal detector's detecting capacity is more stable and dependable ,improving detecting effect
Application
Model JZD-366 digital metal detector is mainly used for checking metal impurities which mix or drop in bakery ,pizza ,hamburger ,puree ,sauce ,vegetable tobaccos etc and other occasion that need metal detection ,it can apply to high temperature ,low temperature ,damp,dry,dust ,dew and other poor work environment,
Main Features
|
Model |
JZD-366 |
||||||||
|
The Width of inspection window (mm) |
400 |
400(customization) |
|||||||
|
The Height of inspection(mm) |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
|
Non-Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
304SUS(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
Alarm |
audible and visual alarm ,automatic stop |
||||||||
|
Raw material |
SUS304 |
||||||||
|
Normal machine size (mm) |
160(L)cm×90(W)cm×100(H)cm(Based of normal size) |
||||||||
|
Net Gross |
330kg (based of normal size) |
||||||||
|
Electrical source (Power) |
110V/220V/380V 50Hz/60Hz (Power)90W |
||||||||
|
Conveyor speed |
25-30m/min(can design it according customer's requirements) |
||||||||
|
Conveyor height |
650mm±50mm (normal ) can manufacture it as customer's need |
||||||||
|
Noted: the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,can install auto -rejection equipments according custom's requirements |
|||||||||
